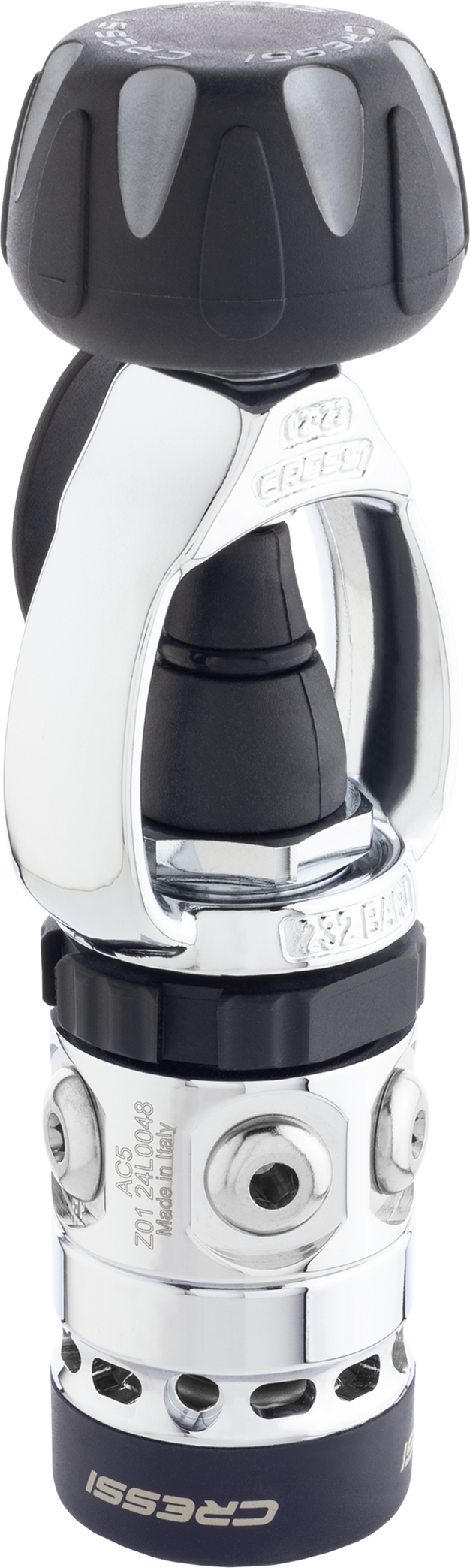

AC5 1St Stage Only

The AC5 is a piston-controlled first stage that represents the workhorse of the diving industry: simple, robust, reliable! At Cressi, all piston first stages feature our proprietary external direct adjustment system, reducing the regular need for replacement parts or shims, thus minimizing service costs over many years. The AC5 boasts an optimized design for maximum flow and a conical filter for improved filtration in both versions, DIN or INT. Enlarged water passage slots allow for perfectly efficient rinsing, better pressure balance, and enlarged tool housing holes for easy maintenance.

Technical Features

• New piston 1st stage with INT or DIN 300bar connection.
• 4 L.P. ports, 1 HP port for optimal hose orientation.
• Direct external IP calibration system for precise pressure adjustment.
• IP calibration value: 9.5-10bar for consistent performance.
• New optimized 1st stage design for maximum flow.
• Conical filter for improved filtration in both versions.
• Single maintenance kit for both INT and DIN versions.
• Increased water passage slots for better pressure balance.
• Enlarged tool housing holes for easier servicing.
• CE EN250 certification pending for warm water use.
• Glossy finish with “Gun Metal” DIN wheel.
• Interchangeable parts with AC25 and AC2 models.
• Weight, INT version: 670g
• Weight, DIN version: 495g
