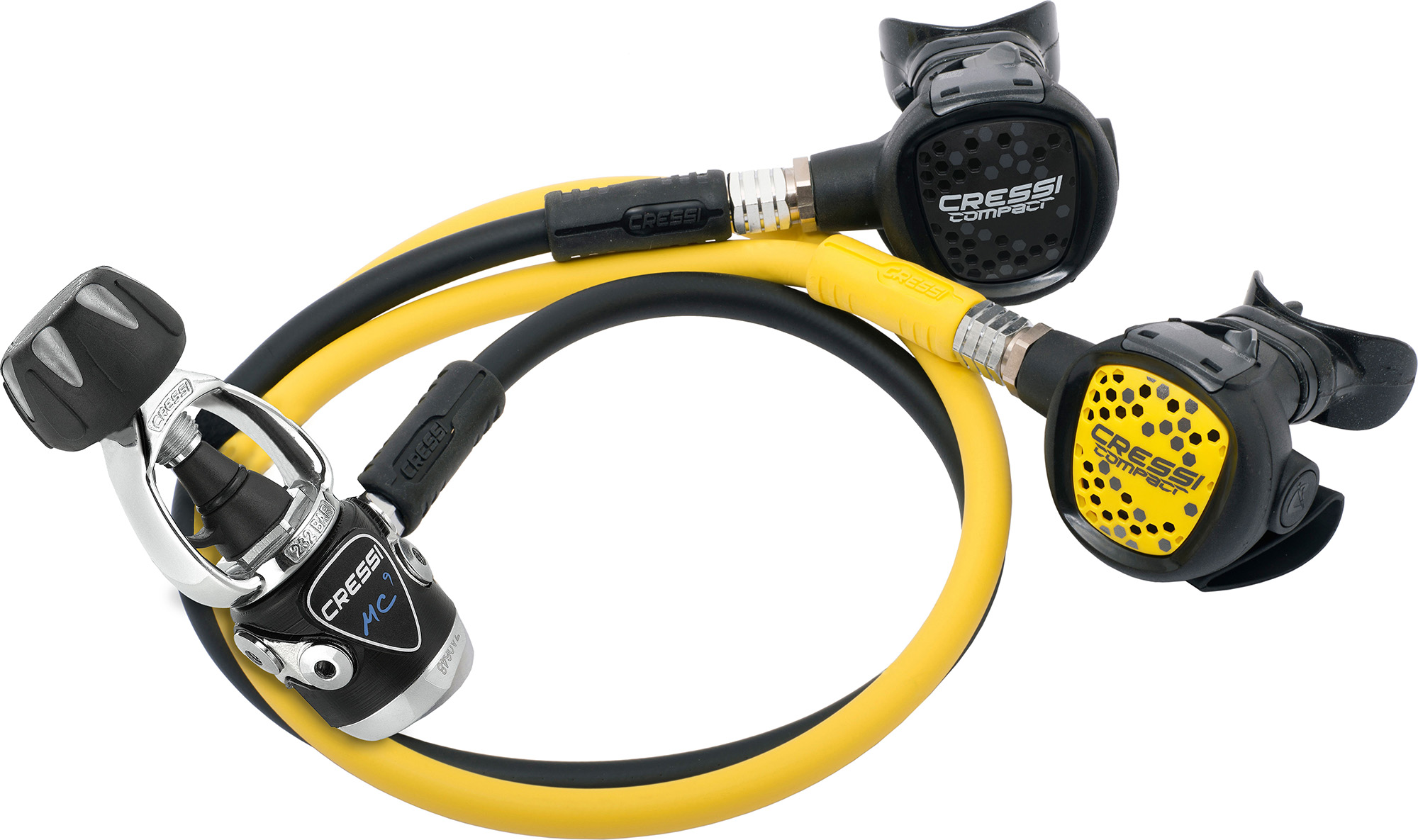

MC9 + Compact + Octopus Compact Regulator

Technical Features

Features 1st Stage:
• Hyperbalanced diaphragm
• 2 HP 7/16 UNF outputs
• 4 outlets MP 3/8 UNF
• Working pressure: 300 bar (4350 psi) DIN version, 232 bar (3365 psi) International version
• Calibration pressure: 10 bar
• Chemically nickel-plated brass body
• High capacity filter in chemically nickel-plated spherical bronze
• Removable nozzle in AISI 316 steel
• Overbalancing system
• Pneumatic spring to prevent pressure drop
• Stainless steel calibration spring with micropeening treatment
• Piston sliding sleeve replaceable during maintenance
• Polyurethane thermoplastic body protection
• Quantity of air delivered: 4500 l/min
• Weight INT version: 590 g
• Weight DIN version: 450 g

Features 2nd Stage:
• Downstream system
• Adjustable Venturi effect
• Patented anti-friction lever
• Large purge button
• Scratch-resistant surface
• Bayonet cap holder with safety lock
• Drain T removable without tools
• Weight without hose: 135 g
• Extremely light and flexible whip: 153 g
